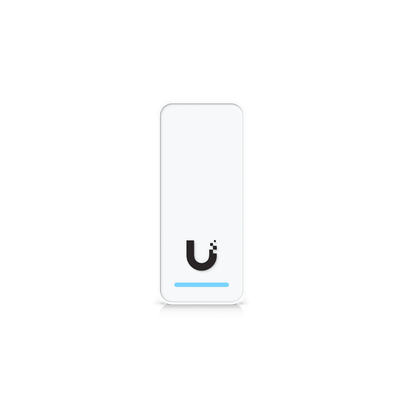

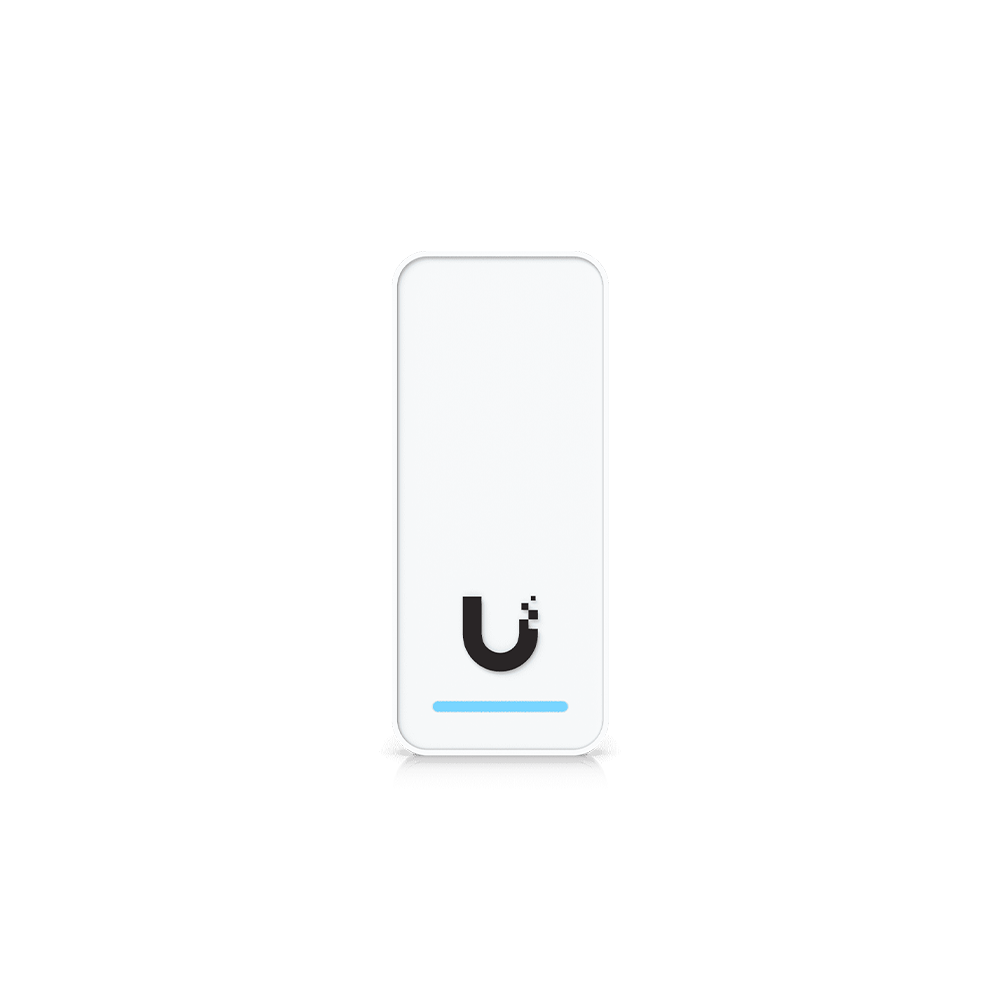

Ubiquiti UniFi Access Reader G2 (UA-G2)
The
Ubiquiti UniFi Access G2 is a cutting-edge access control system that offers convenient and secure entry to your premises. With the ability to unlock using either an NFC card or the UniFi Identity mobile app, authorised individuals can easily gain access. The device boasts additional handwave unlock functionality, further enhancing accessibility.
The UniFi Access G2 features entry and exit greeting messages, allowing for personalised and informative interactions. By connecting to the UniFi Access Hub using Power over Ethernet (PoE), it ensures a seamless integration into your network infrastructure.
Its IP55 weather resistance rating enables reliable operation in a wide range of environmental conditions, spanning from -30 to 45°C.
Ubiquiti UniFi UA-G2 Key Features
- Unlock using an NFC card or UniFi Identity mobile app
- Additional handwave unlock functionality
- Entry and exit greeting messages
- Connects to UniFi Access Hub using PoE
- IP55 weather resistance (-30 to 45° C)
UniFi Access App
The UniFi Access mobile app is a convenient, comprehensive management tool that allows you and other administrators to oversee every aspect of your access system, including connected doors, user rosters, reader devices, access cards, and security policies. With the app, you can also view real-time access event logs to maintain full vantage of visitor and employee traffic through your workplace.
Ubiquiti UniFi UA-G2 Technical Specifications
Mechanical
- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- Weight: 82 g (2.9 oz)
- Enclosure material: Polycarbonate, glass
- Mounting: In wall, gang box
- Weatherproofing: IP55
Hardware
- Networking interface: (1) 10/100 MbE RJ45 port
- Connectivity: BLE 4.1
- Power method: PoE
- Supported voltage range: 48V DC
- Max. power consumption: 5W
- ESD/EMP protection: Air: ±15kV, contact: ±8kV
- Sensors: Proximity sensor
- Speaker: (1) 8 ohm, 0.7W
- LEDs: R/G/B/W
- Button: (1) Factory-reset
- NFC frequency: 13.56 MHz
- NFC read range: < 30 mm
- NFC standards: ISO 14443A, 14443B, 15693
- NFC technology: NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
- Operating temperature: -30 to 45° C (-22 to 113° F)
- Operating humidity: 5 to 90% noncondensing
- Certifications: CE, FCC, IC
Software
- Management application: UniFi Access: Version 1.5.9 and later
